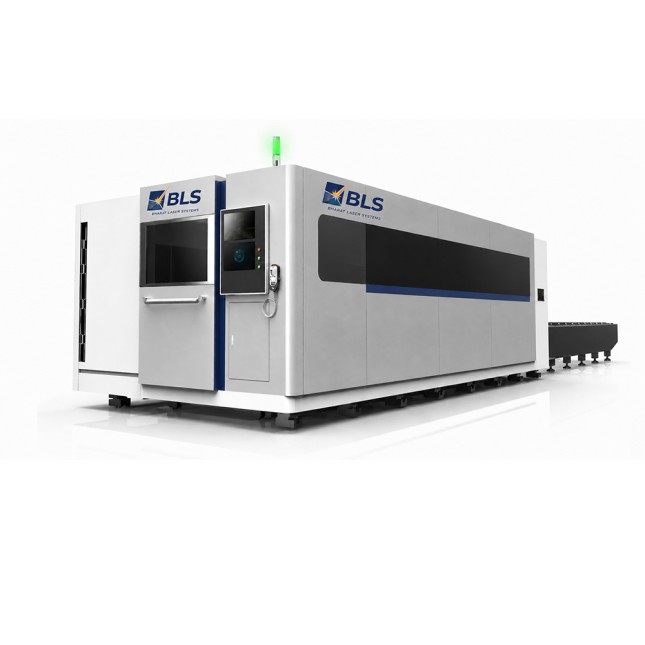

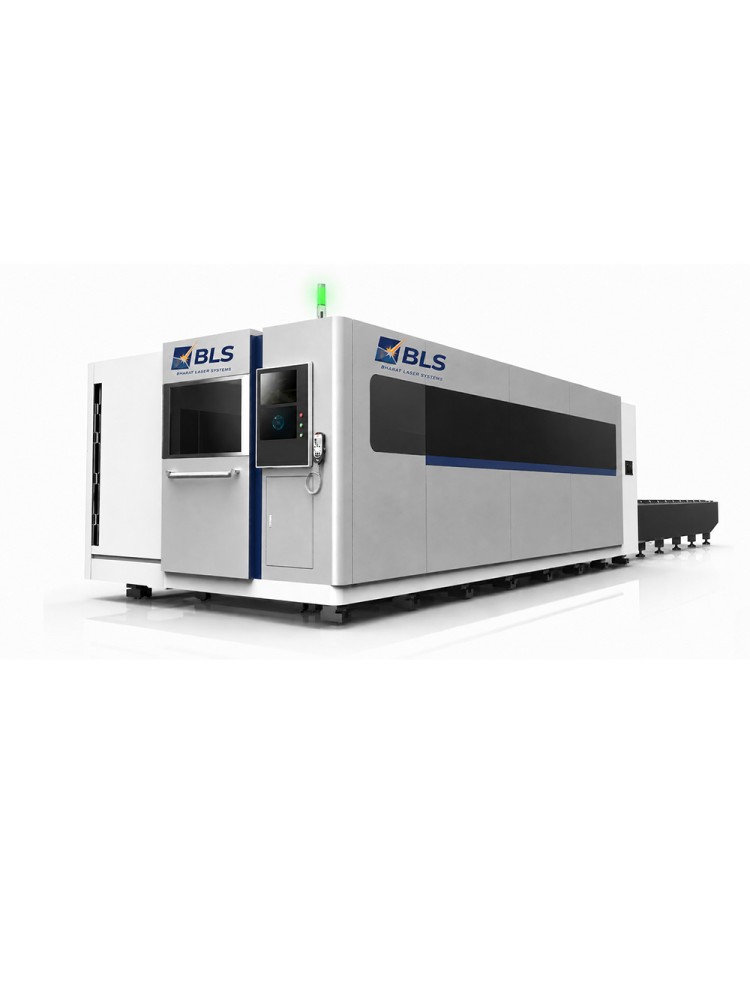

Dual table with covered body BL 3015 C
Dual table with covered body BL 3015 C
Description:
The BLC Series represents the pinnacle of operator safety, environmental cleanliness, and high-efficiency manufacturing.
- Brand: Bharat Laser Systems
- Product Code: BL-3015-C
- Availability: In Stock
The BLC Series represents the pinnacle of operator safety, environmental cleanliness, and high-efficiency manufacturing.
Combining a high-speed Dual Table system with a fully enclosed, rugged Covered Body design, this premium fiber laser cutting machine provides complete protection against laser radiation and containing flying sparks.
Equipped with integrated dust extraction and ventilation interfaces, it keeps your facility's air clean while delivering world-class cutting performance on carbon steel, stainless steel, aluminum, and brass.'
| TECHNICAL PARAMETERS | |||
|---|---|---|---|
| Model | BL 3015 C | BL 4020 C | BL 6525 C |
| Laser Power | 1.5-6kW | 1.5-6kW | 3-20kW |
| Cutting Area(Length*Width) | 3200×1600mm | 4064x2032mm | 6550×2550mm |
| Maximum Acceleration | 1.5G | 1.5G | 1.5G |
| X/Y Axis Positioning Accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| X/Y Axis Re-positioning Accuracy | ±0.03mm | ±0.05mm | ±0.05mm |
| Max. Linkage Speed | 120m/min | 120m/min | 120m/min |
