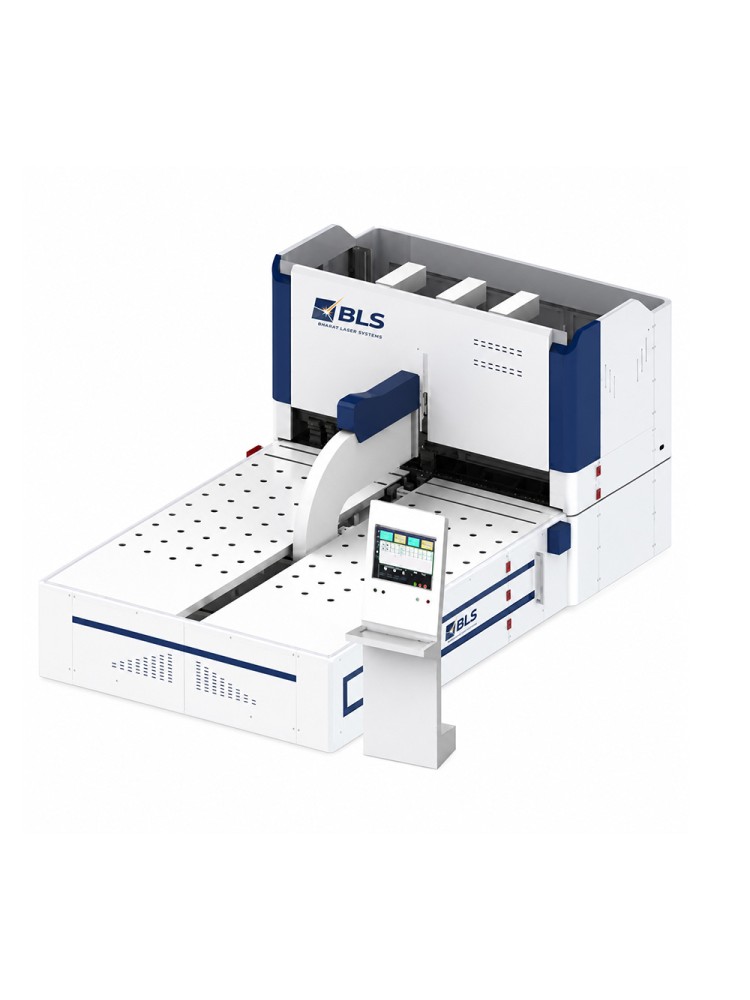

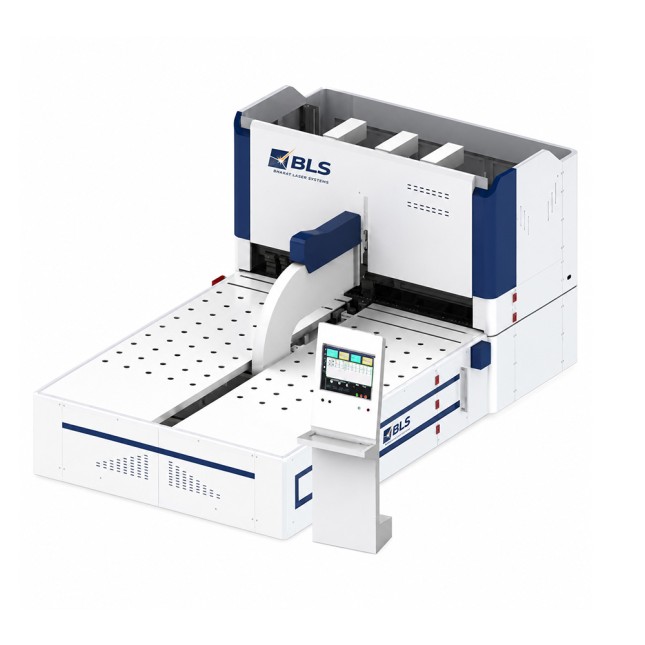

Automatic panel bender BL-HS2500
Automatic panel bender BL-HS2500
The BL-HS2500 Automatic Panel Bender is a next-generation sheet metal forming solution designed to deliver high-speed, high-precision, and fully automated bending operations. Engineered with advanced CNC control and intelligent automation, this panel bending center significantly enhances productivity while ensuring consistent quality across complex bending applications.
- Brand: Bharat Laser Systems
- Product Code: BL-HS2500
- Availability: In Stock
The BL-HS2500 Automatic Panel Bender is a next-generation sheet metal forming solution designed to deliver high-speed, high-precision, and fully automated bending operations. Engineered with advanced CNC control and intelligent automation, this panel bending center significantly enhances productivity while ensuring consistent quality across complex bending applications.
Built for modern manufacturing environments, the BL-HS2500 eliminates the limitations of traditional press brake systems by offering multi-side bending, reduced manual intervention, and faster cycle times. Its robust C-type upper arm structure and high-speed feeding system enable seamless processing of various sheet metal components with exceptional accuracy.
Ideal for industries such as electrical enclosures, elevators, furniture, HVAC, and automotive components, this machine ensures efficient mass production with minimal setup time and reduced labor costs.
| TECHNICAL PARAMETERS | ||
|---|---|---|
| Model | BL-HS2500 | |
| Feeding Structure | C-Type Upper Arm | |
| Bending Length | 2000mm*1250mm | |
| Maximum Bending Height | 170mm/240mm/280mm | |
| Minimum Bending Height | 4mm (Customized according to the thickness of the board) | |
| Min. Inner Size of Four-side Bending | 160mm*280mm (Customized according to the thickness of the board) | |
| Min. Inner size of One-side Bending | 160mm (Customized according to the thickness of the board) | |
| Minimum Arc Radius | 2.0mm | |
| Minimum Continuous Bending Speed | 0.2s | |
| Bending Angle | 0-180°, Thickness ≤2.0mm | -90°~ 90°，Thickness ＞2.0mm | |
| Axes Controllable | customized | |
| Maximum Feeding Speed | 120m/min | |
| Total Power | 93KW | |
| Average Power | 4.6KW | |
| Workbench Structure | Brush & Rolling Bead | |
| Speed Adjustment | Standard | |
| Advanced Command | Standard | |
| Arc Command | Standard | |
| Loading Robot Interface | Standard | |
| Vacuum Pump | Optional | |
| Hinge Tooling | Optional | |
| Equipment Size | 6300mm*3700mm*2500mm | |
| Equipment Weight | 20Ton | |
| Material | Max. Thickness（mm） | |
| Stainless Steel（SS） | 1.5 | |
| Carbon Steel (MS) | 2 | |
| Aluminum（AL） | 3.5 | |
