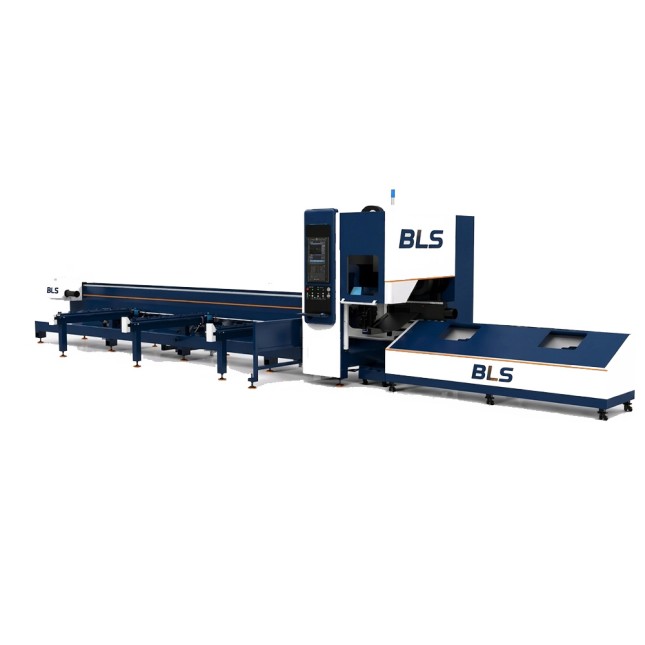

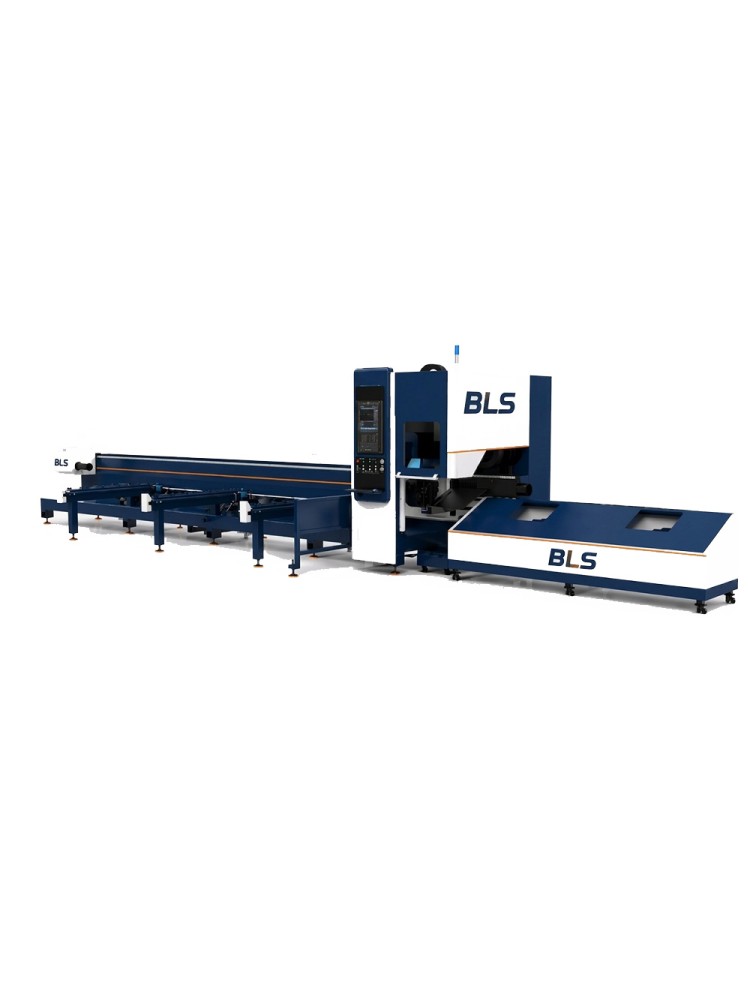

Tube/ Pipe laser cutting machine BL 120
Tube/ Pipe laser cutting machine BL 120
Description:
The BL 120 Tube Series is a dedicated fiber laser solution designed to revolutionize your tube, pipe, and structural profile processing.
- Brand: Bharat Laser Systems
- Product Code: BL-120
- Availability: In Stock
The BL Tube Series is a dedicated fiber laser solution designed to revolutionize your tube, pipe, and structural profile processing. Moving far beyond traditional sawing and drilling, this advanced machinery utilizes high-performance rotary chuck systems to execute intricate cut-outs, beveling, slotting, and precise sizing on complex geometries in a single, high-speed operation.
Engineered with flexible power configurations from 1500W to 6000W, the BL Tube Series effortlessly handles everything from thin-walled architectural tubing to heavy industrial structural pipes.
| TECHNICAL PARAMETERS | |||
|---|---|---|---|
| Model | BL 120 | BL 240 | |
| Power | 1.5-6kW | 1.5-6kW | |
| Cutting Capacity of Round Tube | Φ10-Φ120mm | Φ10-Φ240mm | |
| Cutting Capacity of Square Tube | 10*10-□120*120mm | 12*12-□240*240mm | |
| X/Y Axis Positioning Accuracy | ±0.05mm/m | ±0.05mm/m | |
| Weight of Single Tube | ≈85kg | ≈310kg | |
